Yield Line Theory

YIELD LINE THEORY Yield lines -Typical crack patterns -generated when ultimate moment is reached Characteristics of yield lines are, i) Yield lines are straight ii) Yield lines end at supporting edges of slab iii) Yield lines passes through intersection of axis of rotation of adjacent slab elements Axis of rotation lies along lines of supports and passes over columns Assumptions: The following ...

20.2 YIELD LINE ANALYSIS The yield line analysis is an ultimate load analysis of RC slabs. The method was innovated by Ingerslav (1 923) and was later extended and advanced by Johansen, with the result that it is commonly known as Johansen's yield line analysis. This method of analysis enables the determination of failure moment in slabs of rectangular as well as irregular shapes for different ...

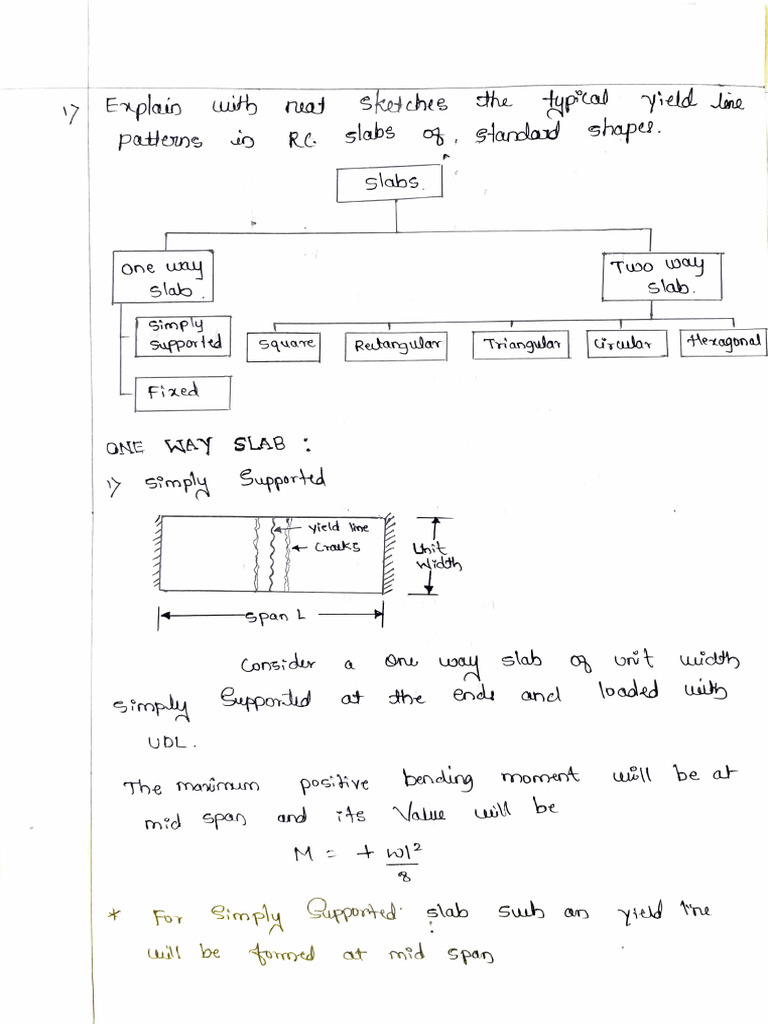

The ultimate goal of yield line theory is to determine the precise location of these yield lines and the collapse load. For two-way slab systems, which are statically indeterminate, an in-depth inelastic analysis ( yield line analysis) is conducted to assess the slab's capacity. Characteristics of Yield Lines in Reinforced Concrete Slabs

6 Yield-Line Analysis of Slabs It is a practical method based on plastic ( or limit) analysis of slabs, permitted by the ACI Code according to ACI 4.5:

Yield Line Analysis of Slabs

The document discusses Yield Line Analysis of slabs in reinforced concrete structures, focusing on design principles, methods, and advantages. It outlines the yield line theory, which is used for analyzing irregularly shaped slabs and includes methods such as the Equilibrium and Virtual Work methods. The document also covers design procedures and rules for yield line patterns, emphasizing the ...

C. H. Goodchild BSc, CEng, MCIOB, MIStructEPractical Yield Line DesignAn introduction to the practical use of Yield Line Theory in the design ofeconomic reinforced concrete slabs, including examples of design of flat slabs, raft foundations and refurbishmentGerard Kennedy would like to acknowledge Trevor Powell, co-founder of Powell Tolner and Associates,for the encouragement and support given ...

Chapter Two

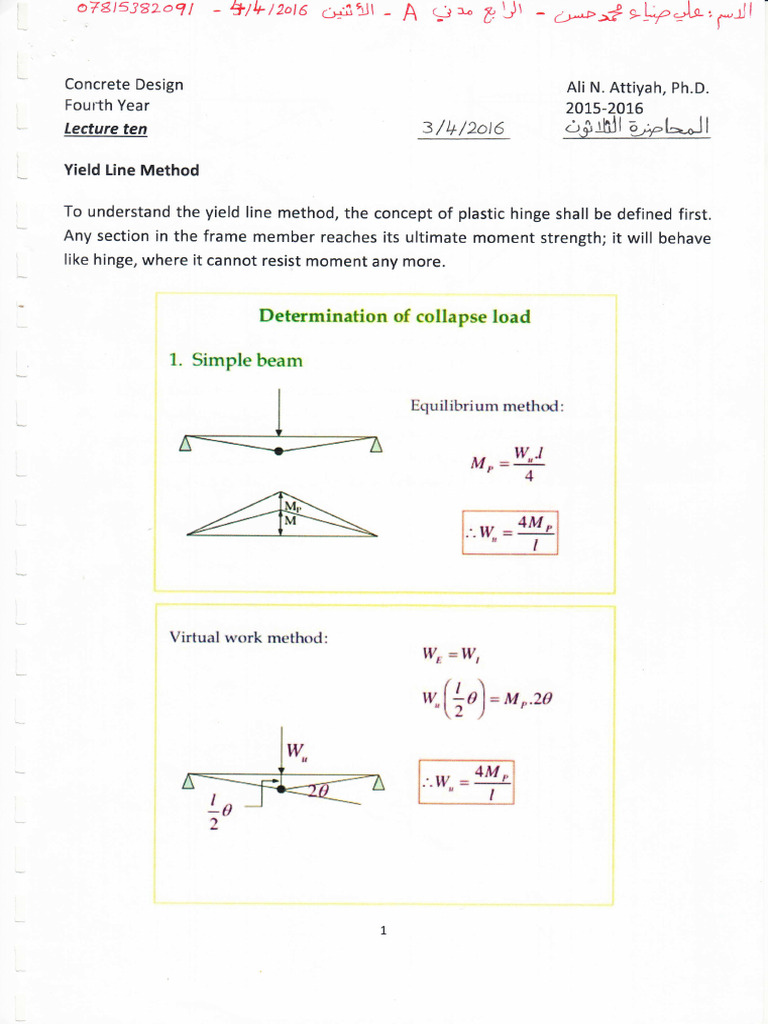

The yield line theory is an ultimate load method of analysis of slab, i.e. the BM at the verge of collapse is used as the basis for design. At collapse loads, an under reinforced slab begins to crack with the reinforcement yielding at points of high moment. The crack lines or the yield lines propagate with the increase in deflection until the slab is broken in to a number of segments.

The notes are about the plastic analysis of slabs. 23 23.1 yield line analysis for slabs introduction most concrete slabs are designed for moments found the

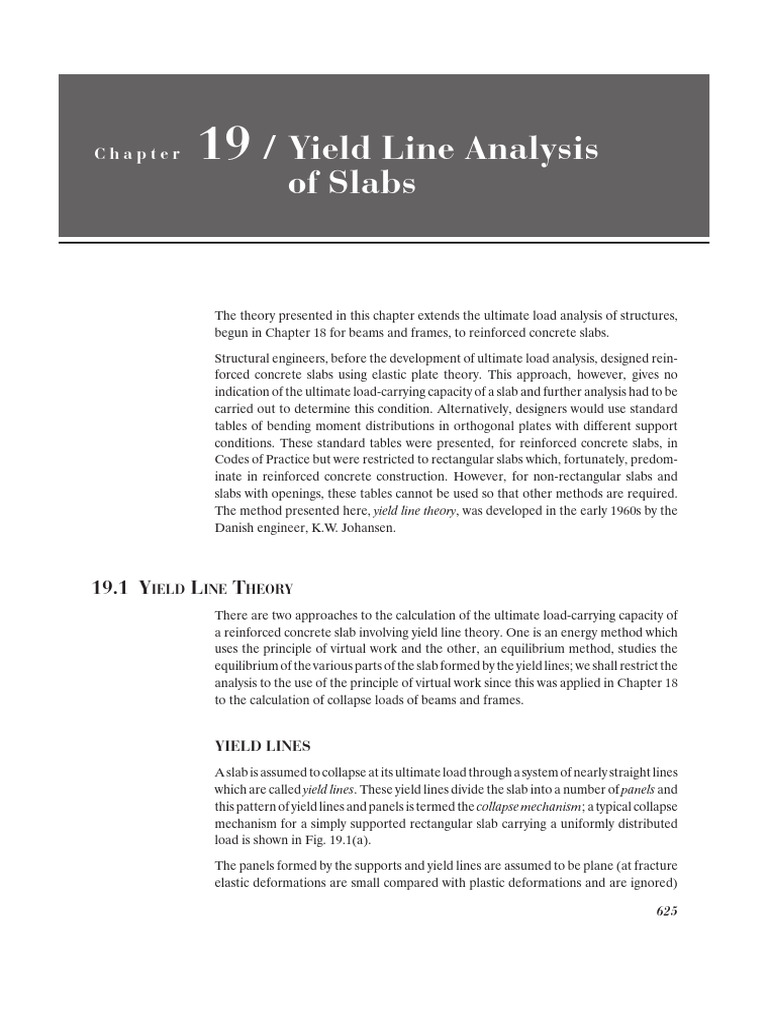

8.2 Yield-line analysis The yield-line theory pioneered by Johansen [2, 3] is an ultimate-load theory for slab design and is based on assumed collapse mechanisms and plastic properties of under-reinforced slabs.

The main principle of yield line theory is to determine the location of appropriate yield lines . In the case of two-way slab systems, which are statically indeterminate, detailed inelastic analysis ( yield line analysis) is conducted.
